Iomed PM850 Phoresor II Auto Iontophoretic Drug Delivery System
Iomed PM850 Phoresor II Auto Iontophoretic Drug Delivery System
82681 - Iomed PM850 Phoresor II Auto Iontophoretic Drug Delivery System

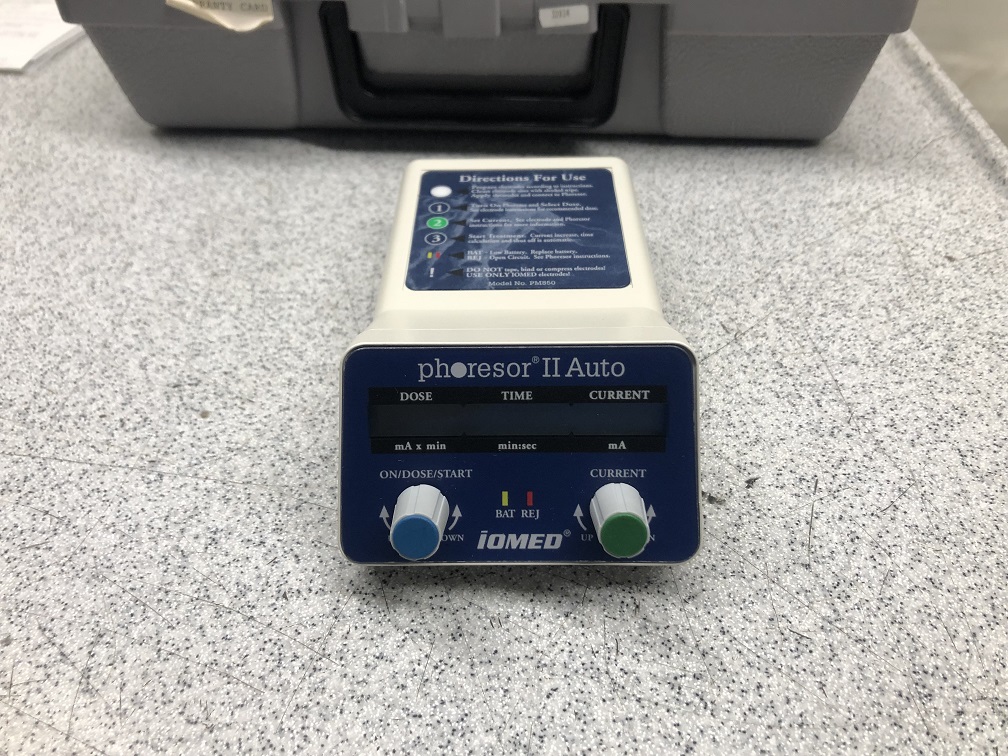

The PM850 allows the user to deliver a specific dose from 0 to 80 mA-minutes and to control the current from 0 to 4 mA. Simply select the dose and set the current; then start the treatment. The Phoresor II Auto automatically calculates required time for the selected dose, even if the current setting is changed during treatment. Current ramp-up and down, shut-off, error messages and safety checks are also performed automatically. The built-in option for manual current shut-off is an added safety feature. The large display provides a continuous update of dose delivered, time remaining and current setting. SPECIFICATIONS: Dose Range - 0 to 80 mA-minutes Current Range - 0 to 4.0 mA (constant current; 0.1 mA increments) Maximum Voltage - 80V DC Display - Dose, Time Remaining, Current (displayed simultaneously with interactive set-up) Current Ramp Up - Automatic (0 to 4.0 mA; built in option for manual override) Current Ramp Down - Automatic at end of treatment (built in option for manual override) Controls - 2 (dose and current) Pause Feature - Yes Low Battery Light - Yes Open Circuit Light - Yes Audible Alerts - Yes Battery - 1 - 9V
