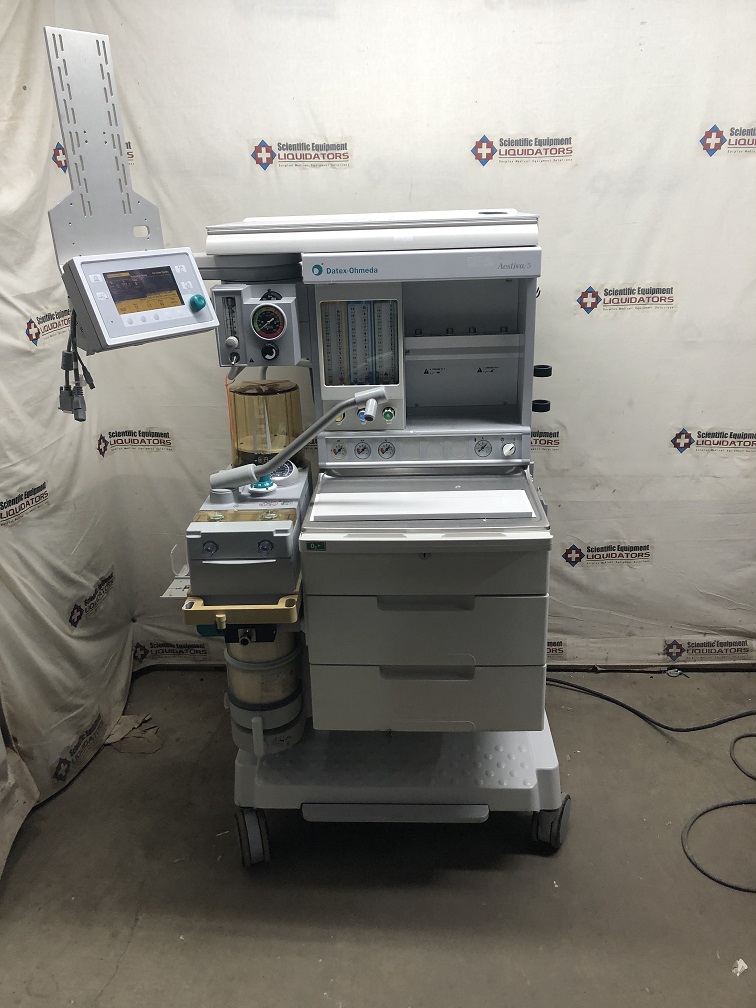

Datex Ohmeda Aestiva/5 with SmartVent Anesthesia Machine
Datex Ohmeda Aestiva/5 with SmartVent Anesthesia Machine
84993 - Datex Ohmeda Aestiva/5 with SmartVent Anesthesia Machine

No Vaporizers
No Key for Locking Drawer

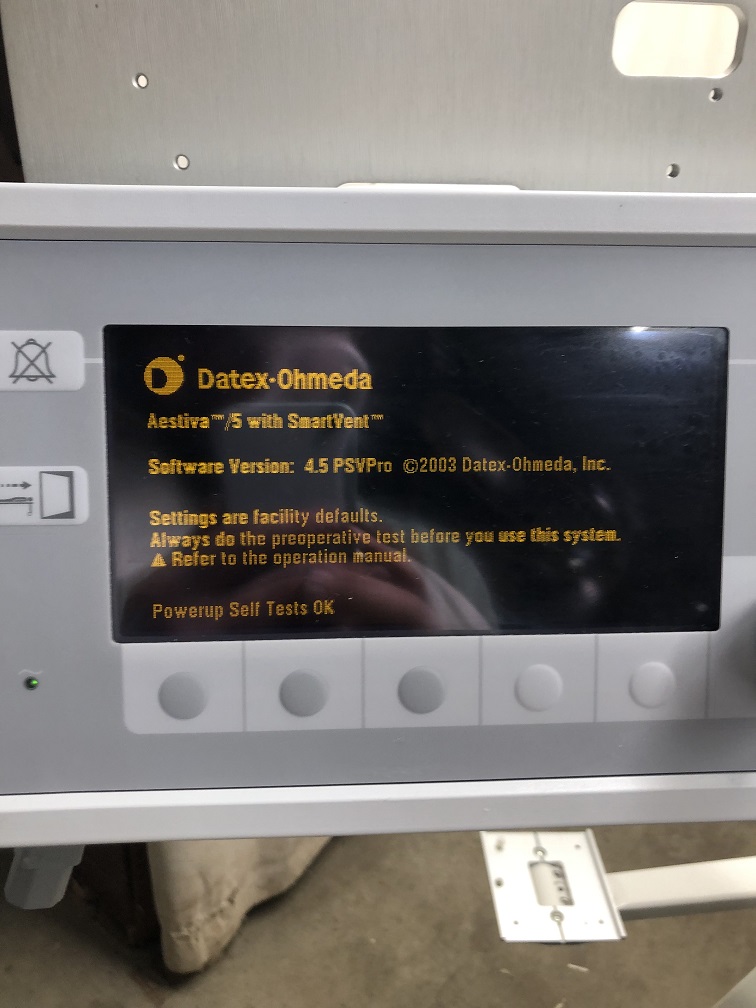

Software Version 4.5 PSVPro

The GE Datex Ohmeda Aestiva®/5 with SmartVent offers you some of the capabilities of a respiratory ventilator, but saves the cost of bringing a separate ventilator into the operating room. Its flexible design and straight forward operations enhance the SmartVent's capabilities to give a higher level of control.
The Aestiva®/5 also provides an optimized system for low and minimal flow anesthesia, reducing agent consumption to save on anesthetic agent costs.
The Aestiva®/5 configuration gives you the ability to use your current monitors and data management systems, helping you stay within your budget while achieving physical integration in one unit.
The Aestiva®/5 also has built-in service diagnostics making service support easy and cost efficient.

Features:

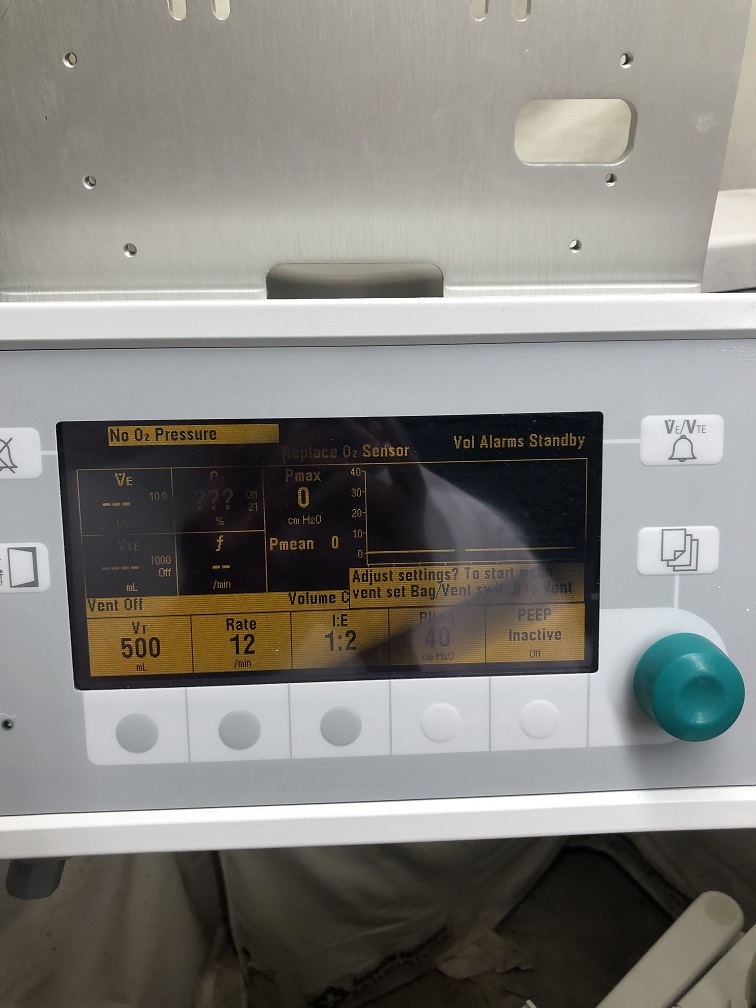

• Anesthesia Ventilator with Pressure Volume Mode Ventilation
• Pressure Control mode: You can choose atarget pressure and deliver the maximumtidal volume for the pressure selected anddesired time.
• Volume Control mode: Delivers the tidalvolume that you set, regardless of changes inthe fresh gas flow and airway pressure, up tothe user selectable pressure limit.
• Low flow delivery techniques: Optimizedby the innovative compensation system,which provides more consistent delivery ofset tidal volumes by automatically adjustingfor changes in small system leaks, freshgas flows, changing lung compliance orcompression losses in the bellows, absorberand ventilator.Integrated breathing system
• Helps improve patient safety and simplify cable management• Protects components from getting disconnected or damaged
• Uninterrupted communication between the breathing circuitand the SmartVent ventilator provided by smart sensorsand switchesOpen architecture
• Can easily fit with existing equipment
• Built-in service diagnostics and durable components canmake service support more cost-effective and easier
• It is an effective, safe unit when practicing low flowand minimal flow anesthesia, as it can minimize agentconsumption, helping reduce anesthetic agent costs
• Can provide intensive care ventilation features, which cansave on cost of bringing an additional ICU ventilator into your operating room

Physical Specifications:
Dimensions - Height: 135.8 cm/53.4 in Width: 75 cm/29.5 in Depth: 83 cm/32.7 in
Weight: 136 kg/300 lb

Work surface-Height: 87.6 cm/34.5 in
Width: 47 cm/18.5 in
Depth: 31.5 cm/12.4 in

Top drawer—locking (internal dimensions)-NO KEY
Height: 10.5 cm/4.1 in
Width: 38.5 cm/15.2 in
Depth: 26 cm/10.2 in

Lower drawers -
Height: 14.5 cm/5.7 in
Width: 38.5 cm/15.2 in
Depth: 26 cm/10.2 in

Ventilator screen-Height: 7.6 cm/3 in
Width: 15.2 cm/6 in
